Pressure Gauges

The Pressure Gauges are offered by us that are method of measuring fluid, gas, water, or steam intensity in a pressure powered machine to ensure there are no leaks or pressure changes that would affect the performance of the system. Pressure systems are designed to operate within a specific pressure range. Any deviation from the acceptable norms can seriously affect the workings of the system. The Pressure Gauges are made available by us in various types as per the need. They are very accurate.

Liquid Filled Pressure Gauges

Liquid Filled Pressure Gauges are used to damp vibrations and pulsations and minimize their effect on the gauge dial pointer. They are used primarily in rugged and dynamic applications where sudden shocks or pressure spikes might occur. Liquid Filled Pressure Gauges help to ensure the gauge maintains accurate readings for its rated lifecycle.

Specification

  • Dial Sizes 63mm, 100mm, 150mm, 250mm
  •  Stainless Steel SS304 Case and Ring IP65
  •  Brass or SS Working Parts
  •  Liquid Filled (Glycerin or Silicon)
  •  1/8 bsp or npt connection
  •  Bottom Direct, Bottom Surface, Back Direct, Back Panel, Back Clamp Mounting



Schaffer Diaphragm Pressure Gauges

Schaffer Diaphragm Pressure Gauges are used to measure gases and liquids. They cover measuring spans from 10 mbar to 40 bar. The measuring element consists of one circular diaphragm clamped between a pair of flanges. Schaffer Diaphragm Pressure Gauges can be availed from us at pocket- friendly prices among our competitors.

Capsule Pressure Gauges

Capsule Pressure Gauges are used for low pressure measurement from 16 up to 600 mbar. These are completely made of stainless steel and suitable for corrosive environments and gaseous media that will attack copper alloys. Capsule Pressure Gauges are known for their precise design, quality, durability and have a long operational life.

Homogenizer Pressure Gauge

Homogenizer Pressure Gauge is used in pharma, food, dairy and beverages industrial application. The presence of continuous pulsating media at high pressure causes failure of ordinary diaphragm gauges. Homogenizer Pressure Gauge is thoroughly checked on different parameters to make sure that we serve a defect free range to our customers.

Specification



  • 100mm ( 4" )  & 150mm (6") Dial Sizes
  •  Glycerin Filled
  •  Bottom Direct Mount
  •  SS304 Case & Ring IP65
  •  SS316 Diaphragm
  •  Available with Loose or Pre-installed 1-1/8" Flange
  •  Pressure Range: 100 to 700kg/cm2 (other units bar, kpa, psi)

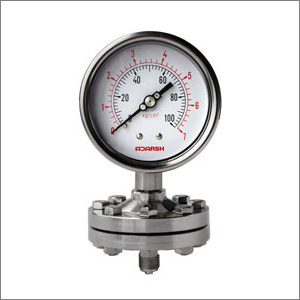

Sealed Diaphragm Pressure Gauges

Sealed Diaphragm Pressure Gauges are used to isolate a pressure measuring instrument from the process media. They are often used for the most difficult measuring tasks, such as when the environment is extremely hot or cold, or when a process connection is difficult to attach to the measuring instrument. Sealed Diaphragm Pressure Gauges have gained us high rising appreciation and demands from our customers.

Load Pressure Gauges

Load Pressure Gauges are an essential instrument used by industry to measure the pressure in a system as a quality check measure and to ensure the consistency of products. For reasons of safety, Load Pressure Gauges monitor fluids, gases, and steam for leaks or a build up of pressure in a system.

Specification

  • Available in dial size 150mm (6"), 200mm (8"), 250mm (10")
  •  Dial Scale in KN (Kilo Newton) or Ton
  •  SS316 Bourdon and Socket, SS304 Movement
  •  Stainless Steel SS304 Case and Ring
  •  Liquid Filling Option (Glycerin or Silicon) for 6" and 10" dial sizes
  •  Socket Welded to Case (6" Dial Size)
  •  3/8 bsp or npt connection
  •  Bottom Direct, Bottom Surface, Back Direct, Back Panel, Back Clamp Mounting
  •  Accuracy  1% F.S.D. for 6", 8" & 10"

Standard Pressure Gauges

Standard Pressure Gauges are the instrument used for measuring the condition of a fluid (liquid or gas) which is specified by the force that the fluid would exert, when at rest, on a unit area, such as pounds per square inch or newtons per square centimetre. We have a team of deft personnel who test Standard Pressure Gauges on several parameters prior to dispatch.

Specification

  • Mild Steel (M.S.) case and Brass Working parts
  •  Dial Sizes: 40mm, 50mm, 63mm, 100mm, 150mm, 250mm
  •  1/8 bsp connection
  •  Bottom Direct, Bottom Surface, Back Direct, Back Panel, Back Clamp Mounting
  •  Accuracy  2-3% F.S.D.

SS Case-Brass Internals Pressure Gauges

There are SS Case-Brass Internals Pressure Gauges offered by us that are instruments for measuring and displaying the pressure of a medium. Pressure gauges are pressure measuring instruments with elastic pressure elements, which have been used millions of times in various industrial applications. Depending on the area of application of the pressure gauge, Bourdon tubes, diaphragm elements or capsule elements are used as pressure elements. The SS Case-Brass Internals Pressure Gauges are offered by us that are suitable for use in the various places as per the need.

Stainless Steel Pressure Gauges

Stainless Steel Pressure Gauges are the ones designed to measure pressure from gases, liquids, vapors or solid bodies in many applications and industries. Premium grade raw material and hi tech machinery is used in making these gauges in accordance with the set industrial norms and standards. Stainless Steel Pressure Gauges can be availed from us at economical rates/

Anti Vibration Pressure Gauge

Anti Vibration Pressure Gauge is designed for use on power units, hydro-cleaning machines, pumps, engine compressors, presses, diesel engines, turbines, chemical, petrochemical and refrigerating plants and on machines and equipment where pulsating pressures or mechanical vibrations are apparent. We have gained huge acknowledgement from our customers for their quality and effectiveness of Anti Vibration Pressure Gauge.
